THE IMPORTANCE OF THE ASPIRATING PIPE NETWORK
ASPIRATING PIPE AND FITTINGS
Fire suppression Limited which a is world leader in the manufacturing and distribution of air sampling pipe and fittings.
Based in Bristol (United Kingdom), we have two separate manufacturing facilities specifically for the air sampling pipe and fittings market. We outright own all our facilities and equipment and purely focused on the aspiration smoke detection industry.
Extrusion – Air Sampling Pipe
Our flagship facility, which is based in Cabot Park in Avonmouth, extrudes air sampling smoke detection pipe. We have state of the art extrusion lines that are dedicated to manufacture the highest quality of ABS aspirating pipe which is designed and approved to meet EN54 part 20.
As the manufacturer, we can make our aspirating pipe to any length in both 25mm or 1 Imperial Inch.
Common sizes are: -
- 25mm Dia x 3m Length (Industry Standard)
- 25mm Dia x 2.4m Length (suitable for smaller vehicles)
- 25mm Dia x 5m Length (Suitable for long pipe runs)
- 27mm Dia x 3m (Stronger than 25mm for harsher environments)
BRANDING
We able to brand all our sampling pipe for larger orders, ink colours range from White, Grey and Black.
High Injection Moulding – Air Sampling Fittings
Our air sampling fittings are manufactured from our second facility in Kingswood, Bristol. We use new and modern state of the art high pressure injection moulding machines dedicated to manufacture our air sampling pipe fittings.
Our tooling is made from high grade steel and provide flawless quality of the aspirating fitting.
We able to manufacture in both 25mm and 27mm.
Colours for everyone
Common Colours, Red, Grey and White. Any other colour is available for larger orders if required.
Compatible Aspirating Systems
- VESDA
- Wagner
- FAST
- AirSense
- Securitron
- Siemans
OUR RANGE OF ASPIRATING PIPE AND FITTINGS

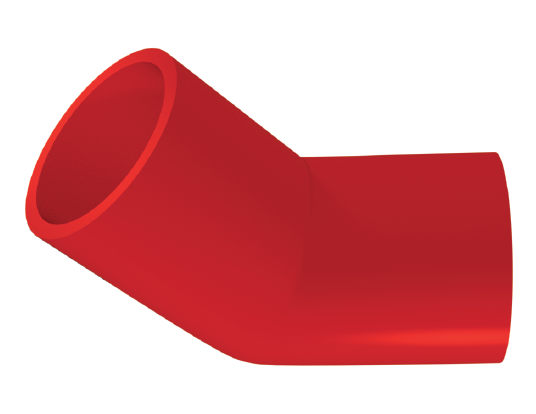

ABS 25mm 45 Degree Air Sampling Bend
Typically use to divert aspirating pipe around obstructions without dramatically changing direction. The 45 degree ben also minimised airflow loss.

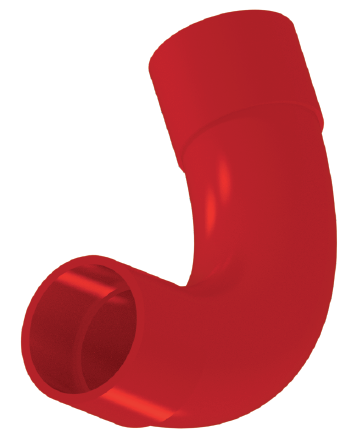

90 Degree Sweeping Bend - ABS - 25mm
Changing direction of an aspirating systems pipe network is essential. Reducing the loss caused by the a 90 degree bend is essential. The more air sampling bends added to a run of pipe the greater the frictional loss. Our 90 degree ben reduces the loss of airflow, keeping the air transport times low and effective.
ABS 25mm Sharp 90 Degree Air Sampling Bend
In some instances space is limited. It is not alway possible to use a sweeping 90 degree bend and A smaller sharper bend is required.

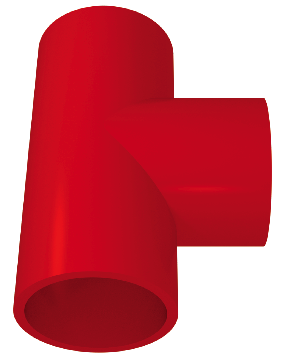

ABS 25mm Equal Tee Air Sampling piece
This equal tee allows the aspirating smoke detection pipe to be spit in different directions.
ABS 25mm Pipe Jointing Socket
A Jointing socket allows the connections of two pipes. It is important that the pipe is glued to the socket

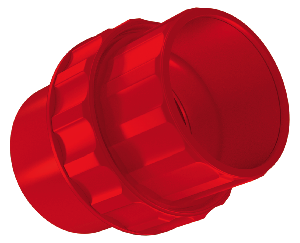

ABS 25mm Socket Union
This component is ideal for the easy break of a pipe. Typically this is used in front of the return air pleniums of air conditioning units
ABS 25mm/27mm pipe adaptor
In some instances there are two different sizes of pipe 1 Inch and 25mm. This component allows the connection of these two sizes. One the one side there is a 25mm id inlet and on the other a 27mm id inlet

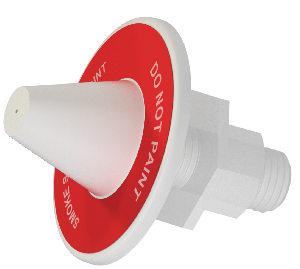

Conical Smoke detection sampling point
This device is used in area's where there are suspended ceilings. The pipe is usually concealed within the ceiling void and the capillary and sampling head tee off the aspirating pipe network

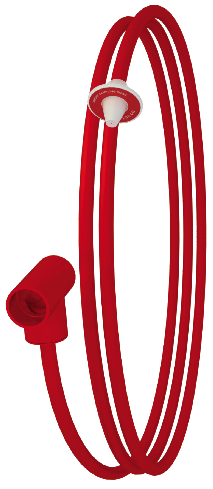

Conical Smoke detection sampling Kit
.

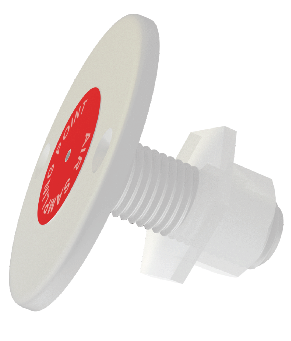

Flush Smoke detection sampling point
.

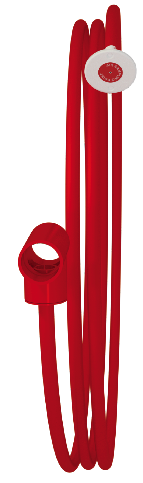

Flush Smoke detection sampling Kit
.
