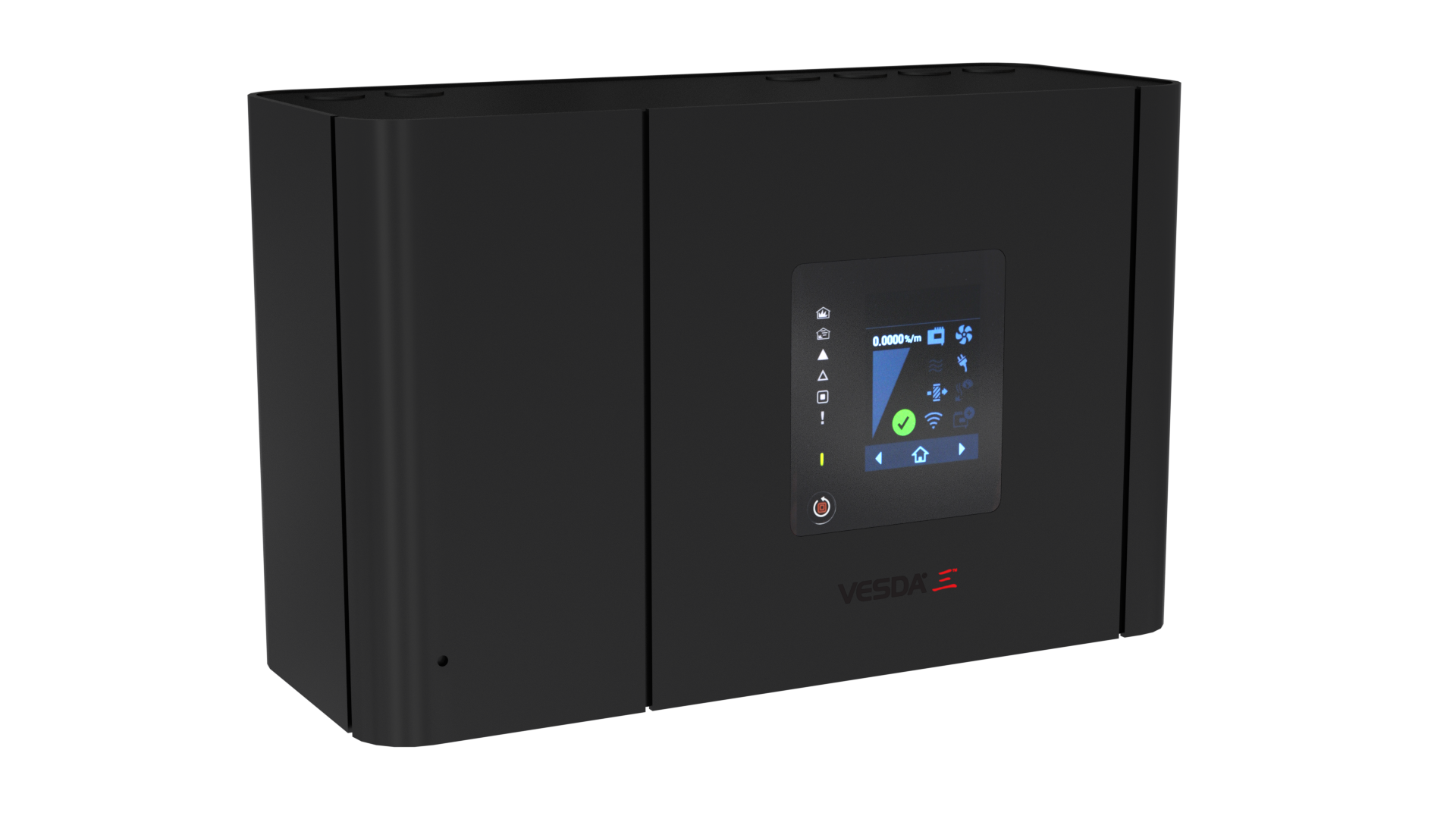

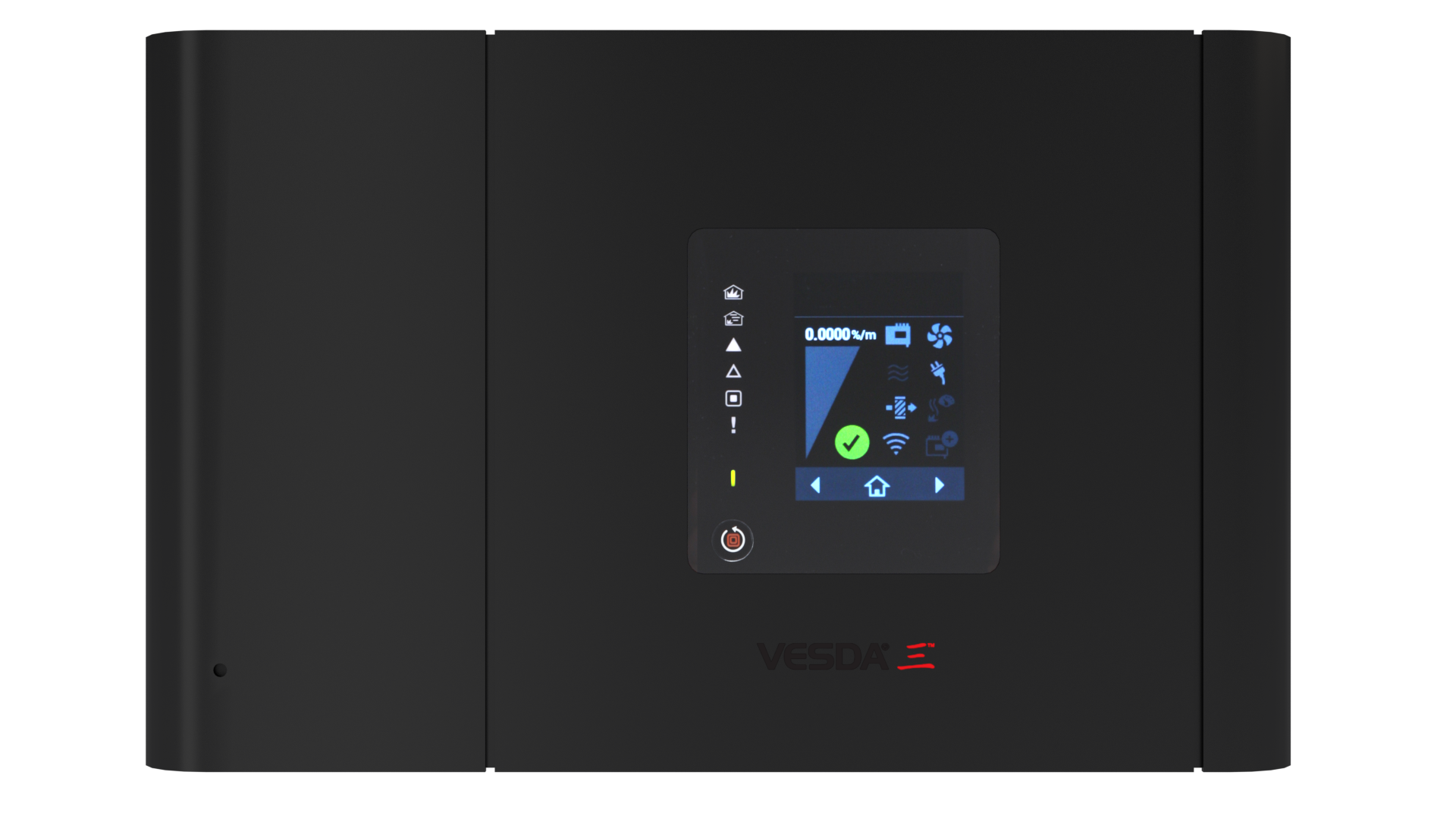

VESDA E-VEP

Availible in single or four pipe model

Pipe Length (Branched) 130 m (427 ft) - 1 Pipe Variant

Four levels - Fire 1, Fire 2, Action and Alert
7 programmable relays (programmable as latching or non-latching) with contacts rated 2 A @ 30 VDC
20,000 Event log capturing for system diagnostics, this includes: Smoke level, user actions, alarms and faults with time and date stamp
VESDA Referencing to monitor external air quality
Compatible with VLP (VESDA LASERPLUS) and VESDAnet
Programmable GPI's
Programmable via USB programmable with VESDA VSC
ASPIRE compatible for flow design
This detector uses sub assemble architecture, so that various modules can be replace on site with removing the detector
IP40 Rated
Four seperate cable entries
Measurement range of 0.000 to 32% obs/m (0.0000 to 11.09% obs/ft)
Sensitivity range 0.005 to 20% obs/m (0.0015% to 6.575% obs/ft)
